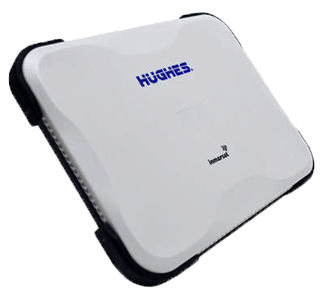

Hughes 9211-HDR
The rugged and lightweight Hughes 9211 is a budget-friendly High Data Rate terminal, ideal for media, governments, NGOs, mobile healthcare providers and more, who demand the finest balance of high performance, quality of service and lowest cost. The 9211 boasts a hardened, compact, and sleek design— the world’s smallest and lightest HDR- capable BGAN. Users can connect at streaming broadband speeds of over 650 kbps with features such as built-in, multi-user WiFi access.
An external powered antenna is available to support long RF cable runs for temporary or permanent fixed-site installations. The user even has the freedom to connect an accessory vehicular tracking antenna, enabling comms-on-the-move directly from the Hughes 9211 terminal. The Hughes 9211 enables users to send and receive IP traffic via Ethernet and/or 802.11 b/g/n WiFi, including voice or fax via a standard telephone connection. It is all IP-based and offers Class 1 background IP or selectable, dedicated Quality of Service (QoS) levels.
Inmarsat’s BGAN HDR service network now offers new and higher streaming rates. The Hughes 9211 supports the highest streaming rates available (above 650 kbps) for transmitting video and other critical data from the field. Asymmetric streaming rates are supported, enabling users to better tailor the service to their individual preferences and minimize cost.
Main Features
Rugged and durable IP65 rating
User-friendly LCD display with four-button control
802.11 b/g/n WiFi supporting multiple user access
Advanced Web user interface
Automatic context activation
XL-band supported
External antenna options
HDR streaming
Interfaces
Ethernet connection (RJ45)
POTS connection for voice and fax (RJ11)
External antenna connector
Compass and audio tone to assist in antenna pointing
Package Contents
Hughes 9211 Terminal
Rechargeable lithium ion battery pack
5m Ethernet cable
AC/DC adaptor, three IEC cables (for UK, EU, US connections)
Optional Accessories
External antenna choices
DC-DC power adapter
Spare lithium ion battery
Extended warranty options
